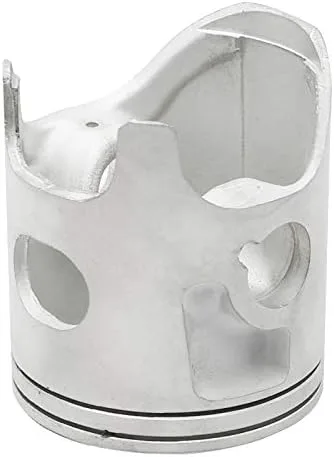

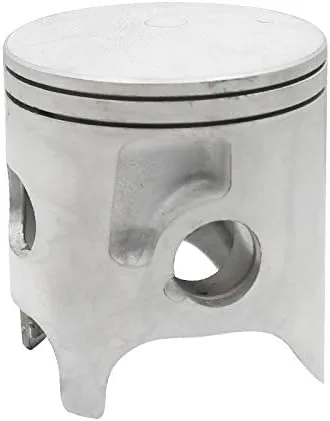

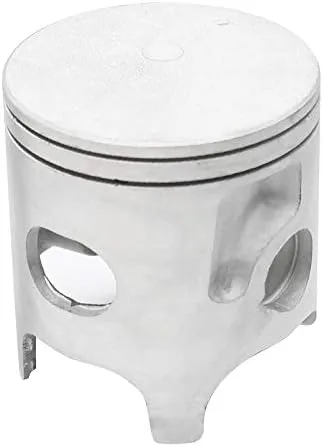

Road Passion Engine Piston and Rings Set 22-39-00-01, 66.4 mm
$69.89
In stock
✓ Free Shipping
66.4 mm engine piston and rings set with piston pin and clips for specified Honda, Suzuki, Kawasaki, and Yamaha models.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandRoad Passion
MPN / Part Number22-39-00-01
OEM / OE Number12110-37F30-0F0
Part TypeEngine piston and rings set
Product Description
Engine piston and rings set with piston pin and clips. Includes a 66.4 mm cylinder diameter piston and rings for supported Honda CR250, Suzuki RM250, Kawasaki KX250, and Yamaha YZ250 applications.
Product Specifications
package dimensions3.39 x 3.23 x 3.23 inches
BrandRoad Passion
Item Weight14.4 ounces
Manufacturer Part Number22-39-00-01
Cylinder diameter66.4 mm
Package contents1 piston, 1 set of rings, 1 pin, 2 clips
Piston materialAluminum alloy
First ring materialSemi-nitriding
Second ring materialSpheroidal graphite cast iron
Oil ring finishChrome-plated composite
Motorcycle Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 1986 | Honda | CR250 | ||
| 1987 | Honda | CR250 | ||
| 1988 | Honda | CR250 | ||
| 1989 | Honda | CR250 | ||
| 1990 | Honda | CR250 | ||
| 1991 | Honda | CR250 | ||
| 1992 | Honda | CR250 | ||
| 1992 | Kawasaki | KX250 | ||
| 1993 | Honda | CR250 | ||
| 1993 | Kawasaki | KX250 | ||
| 1994 | Honda | CR250 | ||
| 1994 | Kawasaki | KX250 | ||
| 1995 | Honda | CR250 | ||
| 1995 | Kawasaki | KX250 | ||
| 1996 | Honda | CR250 | ||
| 1996 | Kawasaki | KX250 | ||
| 1996 | Suzuki | RM250 | ||
| 1997 | Honda | CR250 | ||
| 1997 | Kawasaki | KX250 | ||
| 1997 | Suzuki | RM250 | ||
| 1998 | Honda | CR250 | ||
| 1998 | Kawasaki | KX250 | ||
| 1998 | Suzuki | RM250 | ||
| 1999 | Honda | CR250 | ||
| 1999 | Kawasaki | KX250 | ||
| 1999 | Suzuki | RM250 | ||
| 2000 | Honda | CR250 | ||
| 2000 | Kawasaki | KX250 | ||
| 2000 | Suzuki | RM250 | ||
| 2001 | Honda | CR250 | ||
| 2001 | Kawasaki | KX250 | ||
| 2001 | Suzuki | RM250 | ||
| 2002 | Honda | CR250 | ||
| 2002 | Kawasaki | KX250 | ||
| 2002 | Suzuki | RM250 | ||
| 2003 | Honda | CR250 | ||
| 2003 | Kawasaki | KX250 | ||
| 2003 | Suzuki | RM250 | ||
| 2004 | Honda | CR250 | ||
| 2004 | Kawasaki | KX250 | ||
| 2004 | Suzuki | RM250 | ||
| 2005 | Honda | CR250 | ||
| 2005 | Suzuki | RM250 | ||
| 2005 | Yamaha | YZ250 | ||
| 2006 | Honda | CR250 | ||
| 2006 | Suzuki | RM250 | ||
| 2006 | Yamaha | YZ250 | ||
| 2007 | Honda | CR250 | ||
| 2007 | Suzuki | RM250 | ||
| 2007 | Yamaha | YZ250 | ||
| 2008 | Suzuki | RM250 | ||
| 2008 | Yamaha | YZ250 | ||
| 2009 | Yamaha | YZ250 | ||
| 2010 | Yamaha | YZ250 | ||
| 2011 | Yamaha | YZ250 | ||
| 2012 | Yamaha | YZ250 | ||
| 2013 | Yamaha | YZ250 | ||
| 2014 | Yamaha | YZ250 |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
