PRO BAT Hydraulic Front Disc Brake Caliper System DHBS020BP

PRO BAT Hydraulic Front Disc Brake Caliper System DHBS020BP

$62.99
In stock
✓ Free Shipping

Hydraulic front disc brake assembly with caliper, master cylinder, pads, and 240 mm disc.

Price shown is the online purchase price. Free shipping · 30-day return policy

BrandPRO BAT
MPN / Part NumberDHBS020BP
Part TypeHydraulic front disc brake caliper system
PositionFront

Product Description

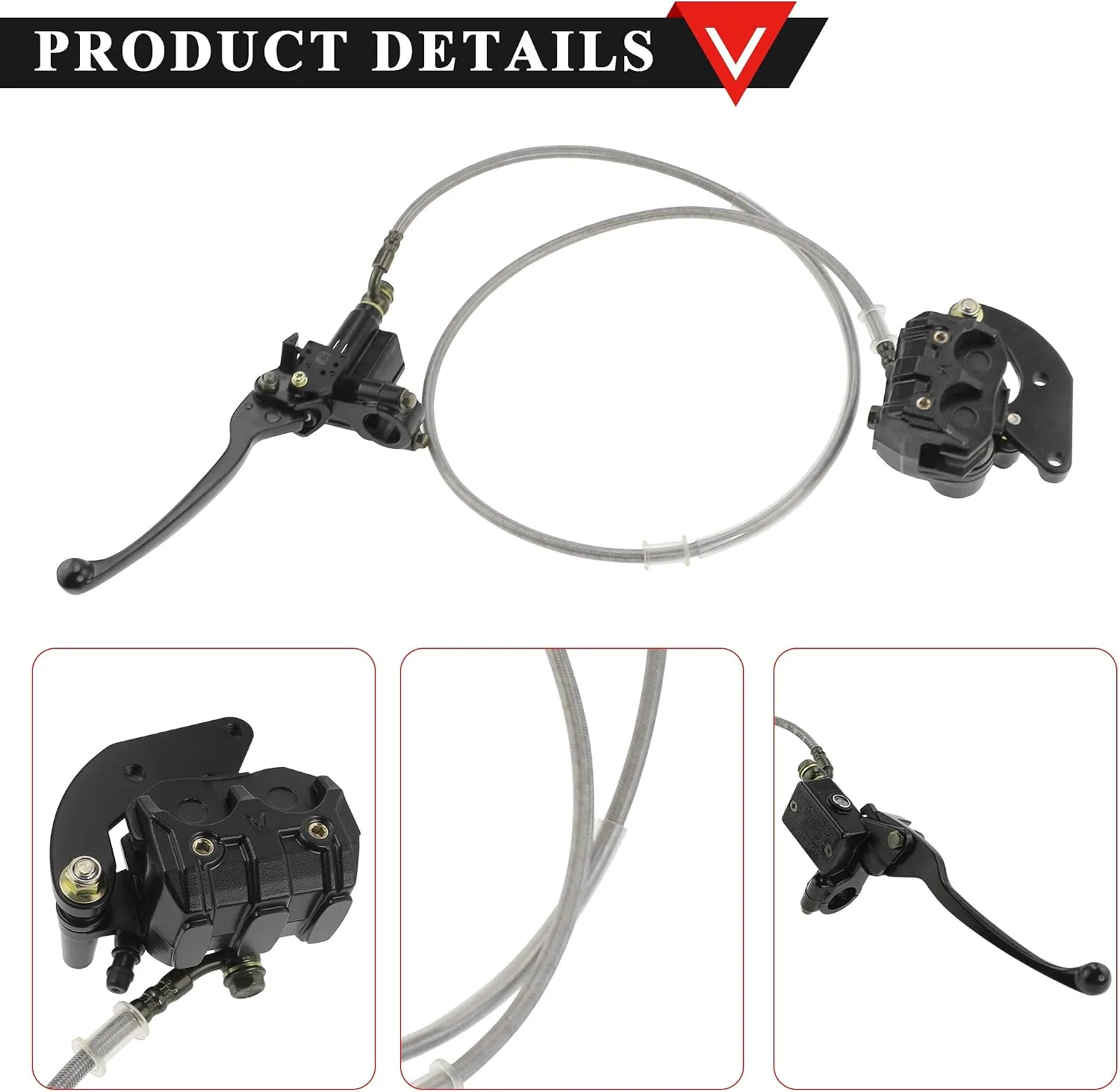

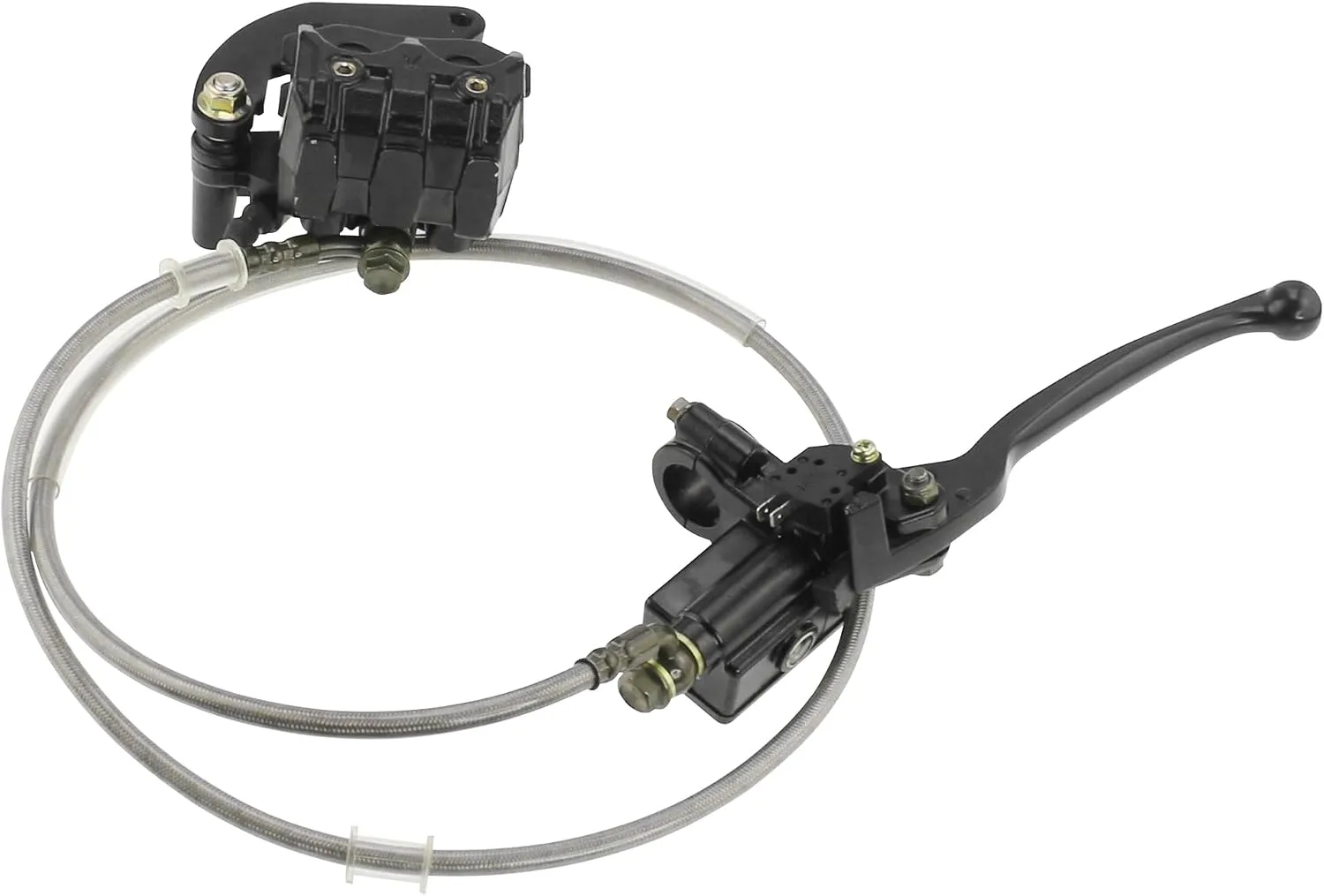

PRO BAT hydraulic front disc brake assembly with caliper, master cylinder, brake pads, 240 mm brake disc, hose, mounting hardware, wrench, and ties. Designed for supported Apollo pit, pro, trail, and dirt bike applications.

Product Specifications

exteriorPainted
package dimensions13.66 x 9.45 x 3.66 inches
BrandPRO BAT
Item Weight4.55 pounds
Manufacturer Part NumberDHBS020BP
PositionFront
Brake Caliper Mounting Hole Distance47 mm / 1.85 in
Brake Oil Pipe Length1180 mm / 46.46 in
Banjo Bolt SizeM10 x 1.25
Master Cylinder Mounting Hole Diameter7/8 in / 22 mm
Brake Disc Outer Diameter240 mm / 9.4 in
Brake Disc Inner Diameter58 mm / 2.28 in
Brake Disc Thickness4 mm / 0.16 in
Included ComponentsFront hydraulic master caliper assembly, 1 pair of extra brake pads, 240 mm brake disc, 4 mounting screws, wrench, and 3 ties
FinishPainted

Motorcycle Compatibility

YearMakeModelPower / EngineVariant
—ApolloPit Pro Trail Dirt Bike150cc
—ApolloPit Pro Trail Dirt Bike200cc
—ApolloPit Pro Trail Dirt Bike250cc

Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
