HPLVZDRG 100CC 4-Stroke Bicycle Engine Kit YH-FDJ011
$274.99
In stock
✓ Free Shipping
100CC 4-stroke air-cooled bicycle engine kit with 3.5 HP, electronic ignition, hand start, and 2 L fuel tank.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandHPLVZDRG
MPN / Part NumberYH-FDJ011
Part TypeBicycle engine kit
Product Description

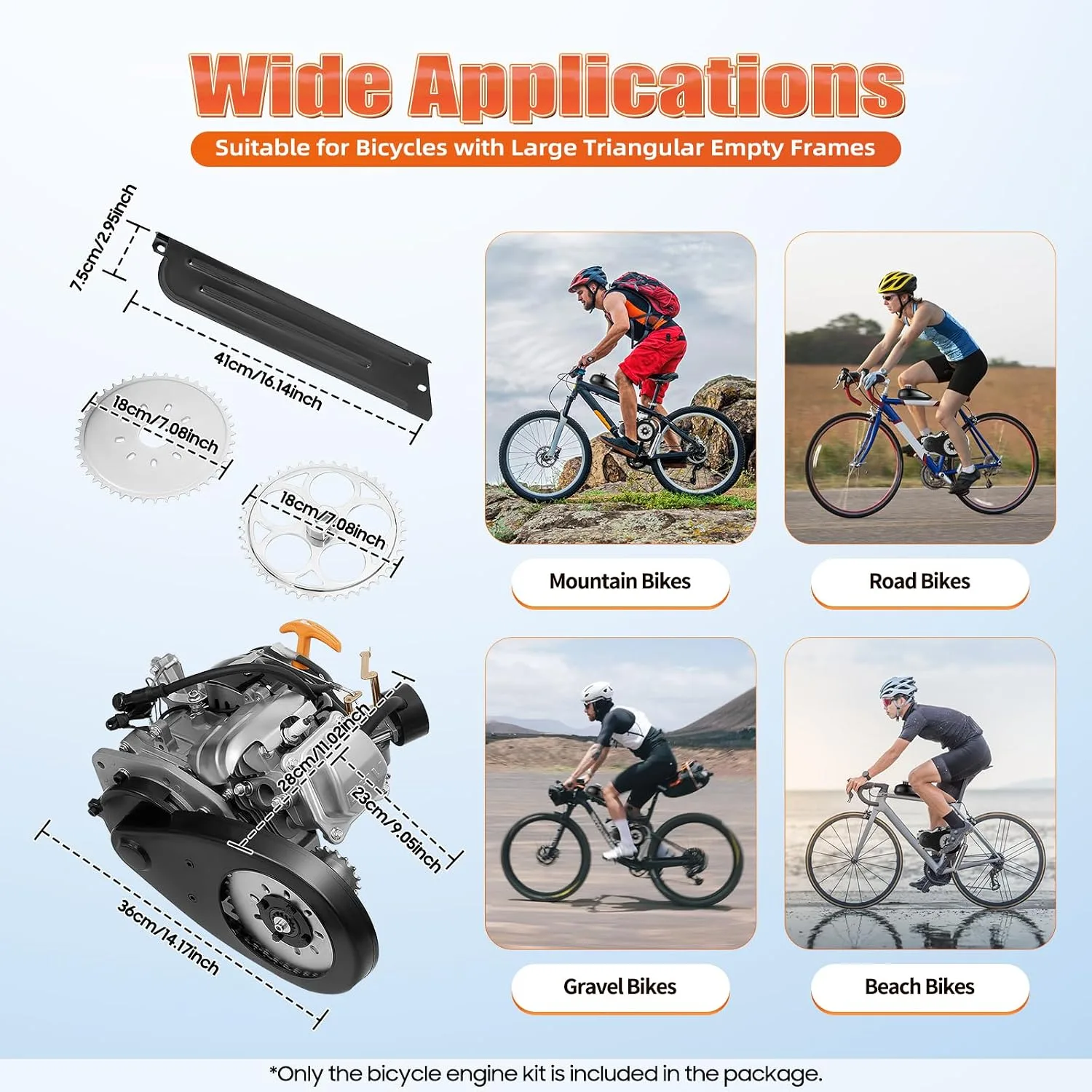

100CC single-cylinder, 4-stroke air-cooled bicycle engine kit with electronic ignition, hand start, 3.5 HP output, and a 2 L fuel tank. Designed for bicycles with large triangular frame openings; assembly is required.
Product Specifications
exteriorBaking Paint
BrandHPLVZDRG
ManufacturerFQRRLUE_US
Item Model NumberYH-FDJ011
Item Weight42.3 pounds
Manufacturer Part NumberYH-FDJ011
Model100CC Bicycle Engine Kit
Product Dimensions14.17 x 11.02 x 9.05 inches
Engine typeSingle-cylinder, 4-stroke, air-cooled
Displacement100CC
Horsepower3.5 HP
Rated power2 kW/h
Maximum torque4.5 N-m
Bore × stroke56 × 40 mm
Maximum speed3,600 rpm
Compression ratio7:1
Starter systemHand start
IgnitionElectronic ignition

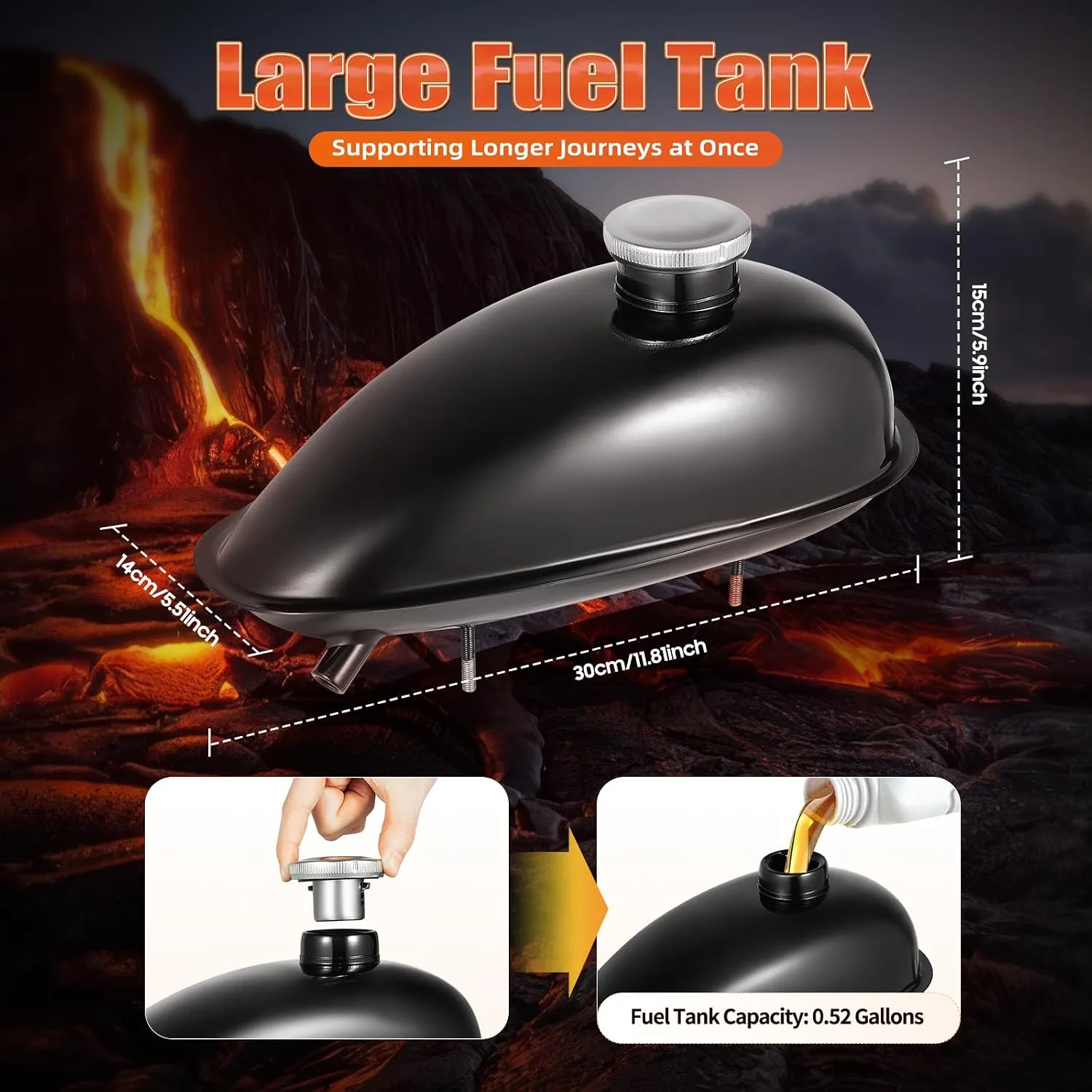

Fuel tank capacity2 L / 0.52 gal
Fuel consumption2.5 L / 0.66 gal per 100 km
Lubricant capacity0.4 L / 0.1 gal
Number of teeth44
MaterialsAluminum, iron, #415 steel, rubber, and nylon
Surface treatmentBaking paint and rust-prevention shot blasting
Maximum load capacity200 kg / 440 lb
Noise levelApproximately 75 dB
Net weight19.2 kg / 42.32 lb
IncludedBicycle engine kit, English manual, and assembly accessories
